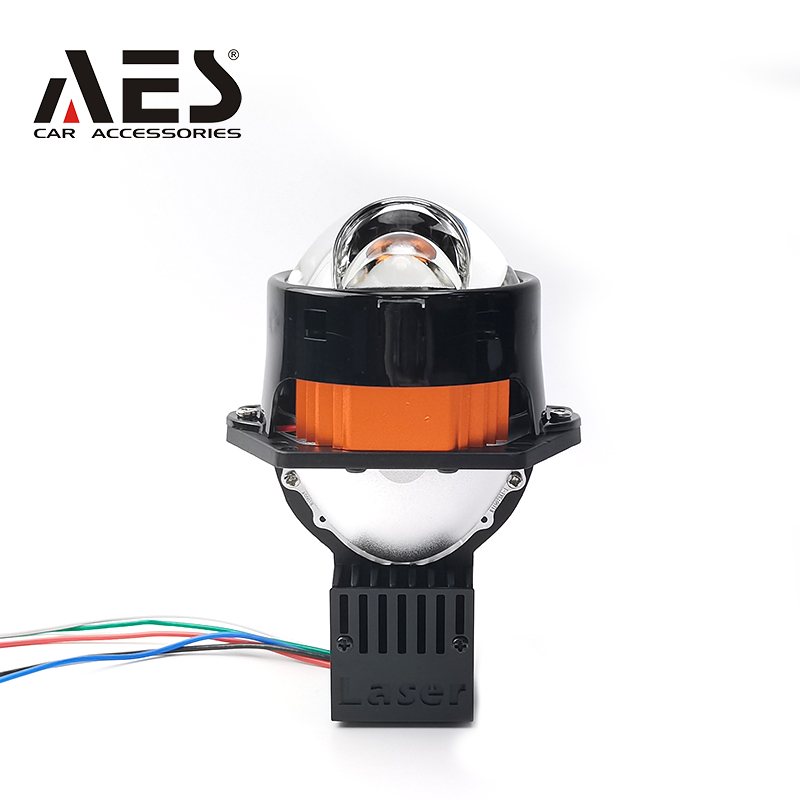

AES F1 Pro Directive Laser Bi-Led Projector Lens 75W Headlight Automotive Bi Led Projector Lens

AES F1 Pro Directive Laser Bi-Led  Projector Lens 75W Headlight Automotive Bi Led Projector Lens

Voltage:9-16V
 Low beam power:55W
  High beam power:75W
 Laser:10W   Laser tube:Nichia
  Size:3.0inch   LM:6800Lux  laser
  Color temperture:6000K
  Size:155*106*76mm ± 1mm
Driver:Build in driver

Reflector:Double Reflector

LED Chips:Double led chips



AES F1 Pro Directive Laser Bi-Led  Projector Lens 75W Headlight Automotive Bi Led Projector Lens

Specifications:

Voltage:
12V-18V
Power:lo beam:
55W-75w
Color temperature:
6000K
Chips: low:
Taiwan led chip
Lumen:
6800LM
Cooling Fan speed:
9500-10000times/Minute
Reflector:
High temperature resistant material
Lens:
HD glass lens
Working Temperture:
-30℃-+85℃
Installation:
black wire:Low beam -,red wire:Low Beam +,yellow wire:lacer high beam +,white grey wire:The electromagnetic valve high beam (+ -)
Material:
Electrically neutral thermal path
Lifespan:
LED module  >=30000H

Voltage:9-16V
  Low beam power:55W
  High beam power:75W
 Laser:10W   Laser tube:Nichia
  Size:3.0inch   LM:6800Lux  laser
  Color temperture:6000K
  Size:155*106*76mm ± 1mm Driver:Build in driver

Reflector:Double Reflector

LED Chips:Double led chips



Advantages:


1)LED CHIP-Adopting Taiwan high temperature resistant  LED chip ,High beam laser tube id from Japan. Stable quality and high luminous flux  .


2)Design-The unique hyperboloid, 3-lens optical design makes LED light source and laser light source perfectly combined, and the illumination effect is far more better than similar products in the market


3)Low Beam-with straight  cutoff shield and strong power led chip  together to create a properly

 distributed and wide beam pattern. With a factory-installed clear lens, the cutoff line is extremely sharp, perfect beam pattern without blind zone and dark spots.


4)
Installation-black wireLow beam -,red wire:Low Beam +,yellow wire:lacer high beam +,white grey wire:The electromagnetic valve high beam (+ -)


5) Irradiation distance -Compare to the  LED projector len,lacer len the irradiation distance reaches to 600M,2 time further than led len.


6)Cooling System- Turbo Fans make sure the heat dissipation effectively, get optimal heat protection and performance .


7)
Reflector :High temperature resistant reflector keep the light and ensure the light performance without blind zone and dark spots.


8)Long life span-50000H ,LED bulb the life span is 6 times more than halogen bulb ,much durable.



Product Show:
