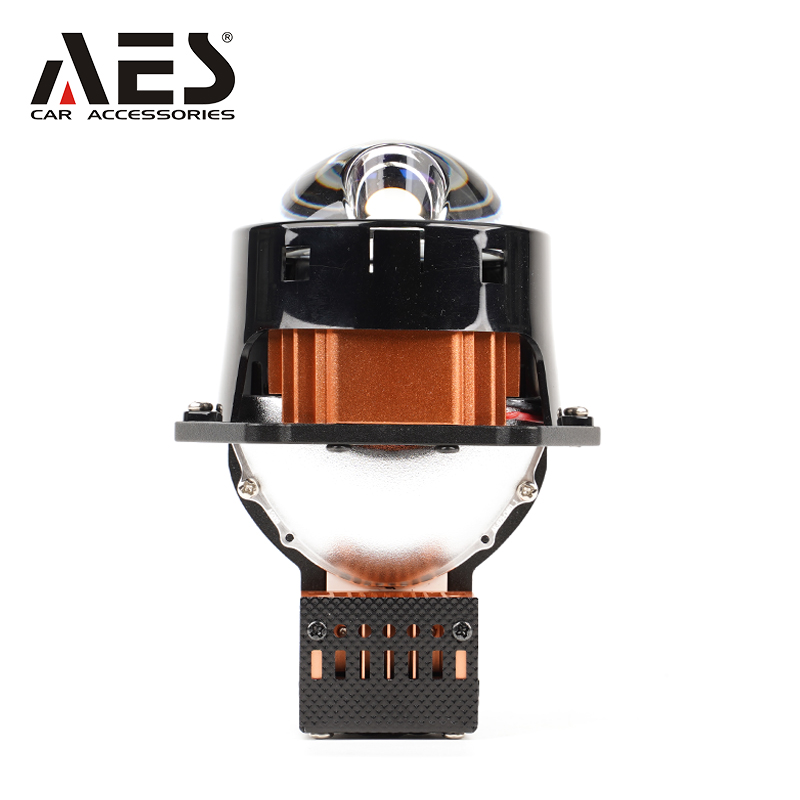

AES UPS WAY MAKER G500 Double Laser Bi-Led Projector Lens Headlight Automotive Bi Led Projector Lens U

AES UPS WAY MAKER G500 Bi-Led  Projector Lens 80W Headlight Automotive Bi Led Projector Lens

Voltage:9-16V
 Low beam power:55W
  High beam power:75W

  Size:3.0inch   LM:6800Lux  laser
  Color temperture:6000K
  Size:155*106*76mm ± 1mm
Driver:Build in driver

Reflector:Double Reflector

LED Chips:Double led chips



AES UPS WAY MAKER G500 Bi-Led  Projector Lens 80W Headlight Automotive Bi Led Projector Lens

Specifications:

Voltage:
12V-18V
Power:lo beam:
55W-70w
Color temperature:
6000K
Chips: low:
Taiwan led chip
Lumen:
7800LM
Cooling Fan speed:
9500-10000times/Minute
Reflector:
High temperature resistant material
Lens:
HD glass lens
Working Temperture:
-30℃-+85℃
Installation:
black wire:Low beam -,red wire:Low Beam +,green wire:low/high beam +,white grey wire:The electromagnetic valve high beam (+ -)
Material:
Electrically neutral thermal path
Lifespan:
LED module  >=30000H

Voltage:9-16V
  Low beam power:55W
  High beam power:75W

  Size:3.0inch   LM:7800Lux  laser
  Color temperture:6000K
  Size:145*106*80mm ± 1mm Driver:Build in driver

Reflector:Double Reflector

LED Chips:Double led chips



Advantages:


1)AES prism series products are new products in 2023 this year. TIR double prism direct white laser lens adopts 12 LED chips from Taiwan and 2 single chips from Osram. The high-beam input power reaches 75W. The maximum luminous flux reaches 700LM. Laser tube brand: Nichia High beam illumination (test distance of 3 meters): 38000LX.


2)it has become a trend to use LEDs as light sources instead of traditional light sources, but LED light sources have the disadvantage of large light angles that cannot meet the requirements of projection display systems. Collection and shaping. "TIR means "Total Internal Reflection", that is, total internal reflection, also known as total reflection, to improve the utilization rate of LED light energy. TIR lens is made by using the principle of total reflection to collect and process light. It is designed to be Penetrating concentrating light, and the tapered surface can collect and reflect all side light.


3)
The heat dissipation system adopts the independent heat dissipation system of the far and near beam LED lamp beads to reduce the temperature of the lamp beads. Aviation aluminum heat dissipation material, efficient heat dissipation, more stable performance, ensuring the stability and life of the lamp bead.ts.


4)
Installation-black wireLow beam -,red wire:Low Beam +,green wire:low/ high beam +,white grey wire:The electromagnetic valve high beam (+ -)



6)Cooling System- Turbo Fans make sure the heat dissipation effectively, get optimal heat protection and performance .


7)
Reflector :High temperature resistant reflector keep the light and ensure the light performance without blind zone and dark spots.


8)Long life span-50000H ,LED bulb the life span is 6 times more than halogen bulb ,much durable.



Product Show:






























Factory Show









Our Servi
ce:




 1. OEM Manufacturing welcome: Product, Package...


 2. Sample order


 3. Please leave your Email and whatsapp,we will send you more details and new models


4. We ship worldwide via Air Mail and Express delivery service.


5. For dispatching smoothly and fast, we may ship items via other carriers. Our decision is final.


6. A message will be sent for you with tracking number and estimated delivery date after your item shipped out.


7. UPS/DHL/TNT/FEDEX express shipping usually takes 4-7 working days depends on the country delivered to.


8. EMS express shipping usually takes 5-15 working days depends on the country delivered to.


9. SPSR usually takes 7-20 working days to Russia.


10.Air mail normally takes 7-25 working days to Asia, West Euro, north America, and 15-45 working days to South America, Russia, Mid-East, East Euro.
